V Star 650 pickup coil and stator replacement

Replacing a Yamaha V Star 650 pickup coil and stator:

For a bit of background story on how I ended up here, a new mechanic stripped the oil filter bolt that happens pretty easily on these bikes. Unfortunately, when fixing it he got metal flakes down in the engine!

One day the next week I went out to start it and crankcrankcrankcrankcrank.  Oh great now what?   It took a good 25 mins to get her started that morning on the way into work and nearly the same on the way home, the next morning she was totally dead and would not start at all.   Following the diagnostics here:  http://650ccnd.com/coil.htm  I found my pickup coil was reading very high and was toast.   I was planning on maybe cracking it open that weekend to fix the sticky clutch but now I had no choice but to break open both sides.

Pulling the stator cover.

Japanese engineering likes to use lots of bolts close together at lower torque than other manufacturers. Be sure to remember exactly which bolt went in what hole, as you can see below they are all different lengths.

Also remember how your shifter is set up. I took a picture so I could tell later where the dot on the shaft goes in relation to the bracket. In my case dead center in the gap.

Unfortunately the kickstand has to come off to remove the shifter. There is a nut on the back side of the frame you need to keep from turning, it would be better if you had a helper and another set of hands for this part. I was by myself and had to use another box-end wrench on the back of the frame and a breaker bar/ratchet with a cheater pipe on the front. Yamaha really doesn’t mess around with these bolts, they were a bear to get off. Once the wrench on the back turned enough to press up against the engine or my lift I was able to break the nut free.

With the kickstand out of the way the shifter will just slide off the shaft after you remove the bolt in the previous picture.

As you can see I also upgraded from my poor mans bike stand to one from Harbor Freight for this operation for a bit more stability and lift, I needed one for the BMW restoration anyway.

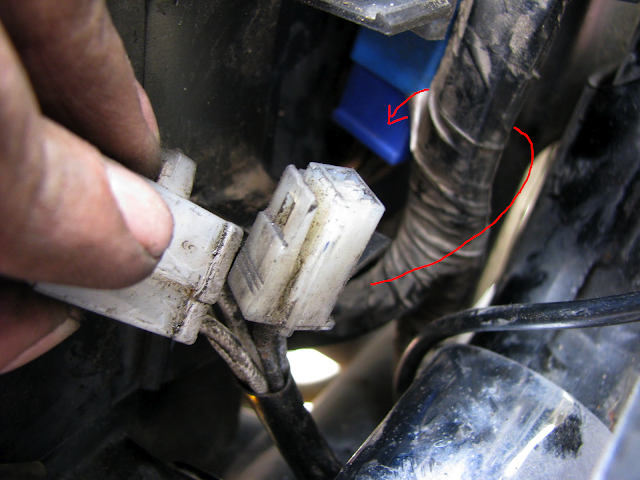

Follow the wiring back up the frame and cut the zip ties as you go and remove a few bolted on wire clamps. Its a bit of a struggle to get these connectors through the downtube, use one hand to press back the big main wiring harness and press these plastic connectors through one at a time. It takes a bit of patience but you can do it.

In this picture the tube is the swingarm bearing tube. The stator/pickup wires go underneith it with the main wiring harness in the backround right under them also pressed up against the swingarm. There is absolutely no way to force those plastic connectors through. The trick I found out is to wrap the stator wires around the main wiring harness where it is verticle and there is more space, see picture. Once that is done, now the main wiring harness is on top and the stator wires below them with lots of space below. They’ll fall right through after that.

This whole ordeal with the wiring would be a lot simpler if you just cut the connectors off. Only my pickup coil was bad though and I wanted to save the stock stator for a backup replacement.

With the wiring free now you can pull the cover off. Its magnetic so try to pull it off as straight as possible or it will bind on the shifter shaft.

Removing the stator:

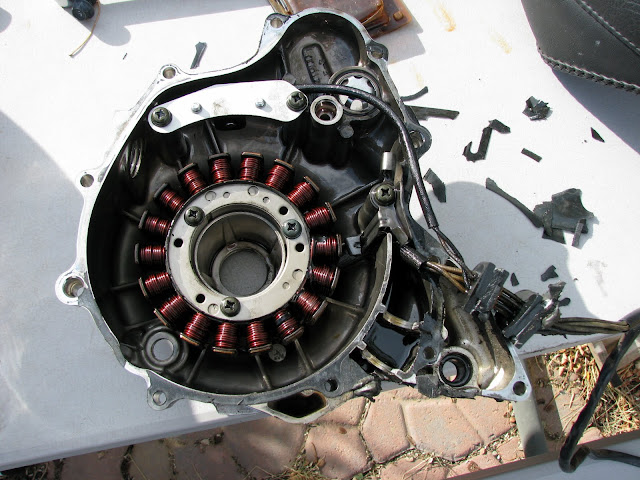

Below you can see inside of the stator cover with the dreaded stator and pickup coil screws! These screws are notoriously difficult to remove. Some people have used Vice Grips or bolt out tools and replaced them with regular hex head or allen bolts. Others have tried to remove them using those methods and cracked the covers! Those @#$%& are really in there and the lock tight that Yamaha uses seems to be stronger than the surrounding soft aluminum. Be careful.

One method that has worked successfully for several people has been to heat up the bolts first prior to trying to loosen them.

Trying my best I could not get those bastard screws to budge and I don’t have an acetylene torch. I took the cover to a motorcycle shop here in town and told the mechanic to use a torch first, he says “Oh no, we’ll just use an impact wrench”   Almost an hour goes by with banging noises from the back and he comes back out and asks if I have a replacement for both pieces because hes going to have to torch it and the wiring might not survive.  Should have listened to me to begin with.

In the end they got them off and didnt want any money for it. I gave the mechanic a $20 for lunch anyway for the help.

In this bottom picture you can also see the pool of oil that would have been between the two stator grommets from my LEAK!   Oil should never get into that space, thats one less barrier from it seeping to the outside.

By then daylight was fading and strong winds were picking up, a sure sign of a big rain storm any second. I frantically covered the gaping hole in the side of my engine as best I could with plastic bags taped in place and called it a day. No sooner did I finish when a huge downpour soaked everything.

Just ignore the wooden bit on the engine, thats another project for some cast aluminum covers. I’ll write more on that as I get more progress.

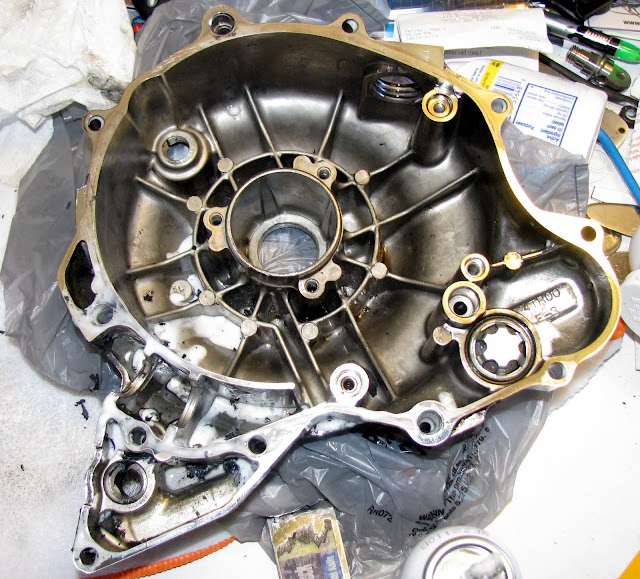

Gasket removal.  Getting all of the gasket off of this cover was a royal bitch and took nearly all day.  When I did the clutch side I found out the secret, put some of the Permatex gasket remover foam on the gasket right away and scrub it in and let it set for a half hour.  Then come back scrape off whats disolved and repeat until clean, only took 3 repeats that way.   The first time I used a scraper first and the gasket remover second and it just would not disolve at all.  I think because I’d scraped off everything to a smooth surface and the foam wasnt seeping in as good.   From now on Gasket foam first!   It also reduces the number of small chips that get into everywhere and are hard to clean out.

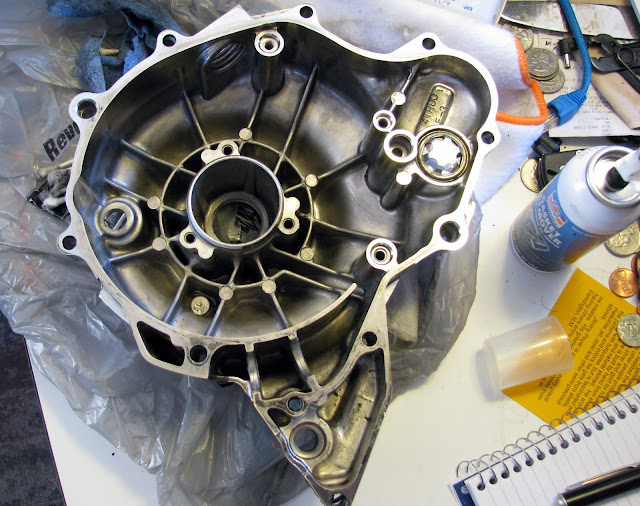

All cleaned! I had to use nearly a whole box of Q Tips and WD40 to clean all the bits of flaked off gasket and crud and oil out of all of those tight spaces.

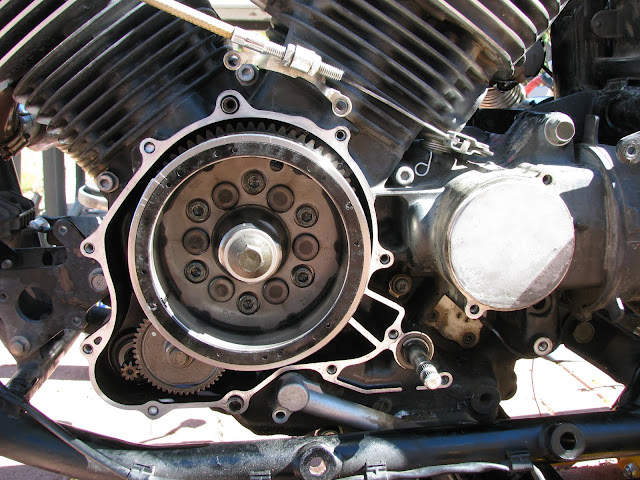

Thankfully the engine side was much easier to clean, go slow so you don’t get bits of gasket down in your crankcase where its harder to get out.

TIP: The alignment tubes at the very top and very bottom do come out to give you a flat surface to scrape.

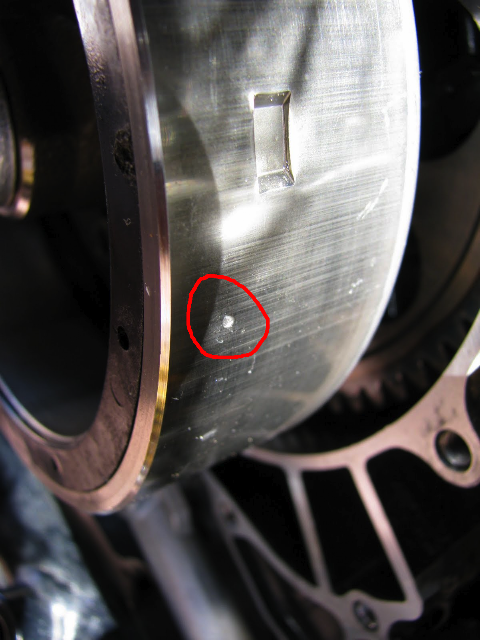

Cleaning inside the crankcase as best I could I noticed some deep scratches and this fairly deep nick out of the magnetic rotor… I think this is the cause of all of my problems. Hard to see in the picture but its fairly deep and had a raised edge that I filed down a bit to get the outside surface flat again. When I had R&S fix the threads they stripped out on the oil cover they got some bits of metal inside the engine and it must have caused this. I think the bits of metal knocking around in there took out the coil, those are some tight clearances it wouldn’t take much.

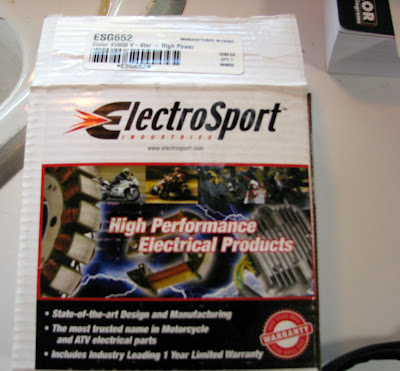

New high output stator and pickup coil from Electrosport Industries!

UPDATE: I have since learned that there have been quite a few failures of the Electrosport stator in even less miles than the OEM. Time will tell how long mine holds out, its not very settling knowing mine could give up the ghost at any time leaving me dead in the water especially with the kinds of trips we do.   I’ve been told that ACCEL and maybe Rick’s Motorsport stators are a better bet. The people who have mentioned using Rick’s have said they use heavy guage wire and they are well made but there are so few of them out there I cant give a recommendation.  I am going to buy a spare ACCEL stator to keep on the shelf at home myself, this way if mine does go out I have a spare handy or I can have someone ship it to me overnight if need be.

UPDATE 2:  My Electrosport stator did indeed end up failing like others I had heard of and I ended up having to replace it and redo everything from this writeup a second time.  Here is the writeup on that and diagnosing the failure.


My original stator screws were reusable, the pickup coil ones were bent beyond belief from being torqued by the impact wrench during removal and needed replacing.

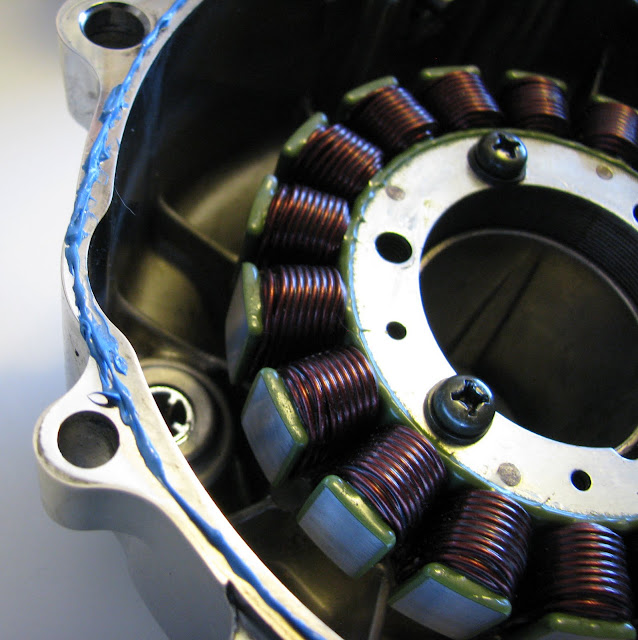

The stator is a press fit into the cover.  Screw in all three screws until they touch the stator then screw them each in one turn at a time to pull the stator down evenly so it wont bind, when they really tighten up its in all the way.  With the stator seated I unscrewed them all and soaked them in red locktight, you don’t want these things coming apart inside your engine!   Judging by how much of a bitch they were to remove I torqued all 6 bolts down as tight as fricken possible so they would not come undone.  I dont mean putting a cheater pipe on your ratchet and stripping it, just as tight as I could get by hand, although I did use vice grips on the handle of the JIS screwdriver from the toolkit to get more leverage for the stator screws.

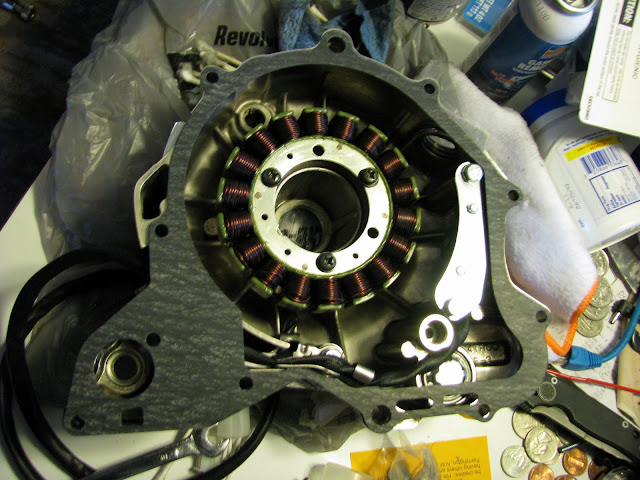

Test fitting the gasket afterwards.  Its a good thing I did, because I’d put the pickup coil guide too close to the case and it wouldn’t fit!  Trimming a hair off the inside of the gasket made all of the holes line up, I sure as heck wasn’t going to undo that bolt now with it locktighted in and tight wire over the head preventing me getting a wrench on it.

As mentioned before, one of the most annoying oil leaks that has developed on my V Star 650 was from the stator wires.  In previous pictures you can see they pass through two rubber gaskets pressed into these ribs below.   I wanted to do absolutely everything possible to prevent a leak from reoccuring in this spot again.

First oil leak preventative step,  seal everywhere those suckers touch with high temp RTV!    Once you start putting down the RTV you need to be prepared to slap everything together quickly so it will cure under pressure.

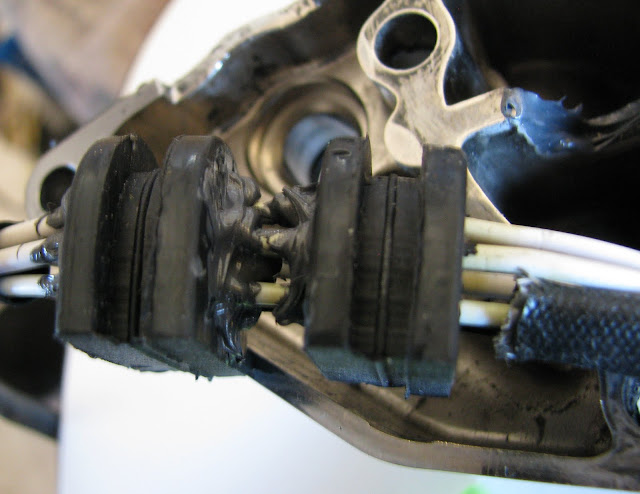

Next:  Seal around every wire one by one.  I sealed between both gaskets and the side facing outside the engine and left the internal face clean in case some pieces of this come loose inside the engine years later and plug up an oil passageway or something.    With the wires thoroughly coated slide the gromments back and forth half a centemeter to a centemeter to draw some of the RTV down into the holes and create a better seal.

With that press the grommets down and create a good seal against the ribs.

Another leak I’ve had in the past was at the front of this cover where the AIS cannester used to be.  To help prevent more leaks from cropping up on this cover I used more RTV, this is blue Permatex Gasket Maker that I’ve used before on my Jeep. Just a little dab will do you, thats the trick to this stuff.  All you want to do is help glue the paper gasket to the metal on both sides and help seal any imperfections.  Run a very fine bead and smooth it out with your fingers.

More black RTV smeared on the flat side of the stator wire grommets.   This part only seals against the flat paper gasket (see picture above with the gasket fitted).  In my opinion thats the fatal flaw in this design, its just a flat surface here the rubber is pressed against and that may be how these leaks from this spot develop.

UPDATE:  I’ve since had a failure of the Electrosport stator and have had to redo all of this work.  I can confirm that when the stator wires going through these grommets are each sealed this way with RTV that there is no chance of it leaking.   You can see in this picture of my teardown a year later that there is not a drop of oil between the two.

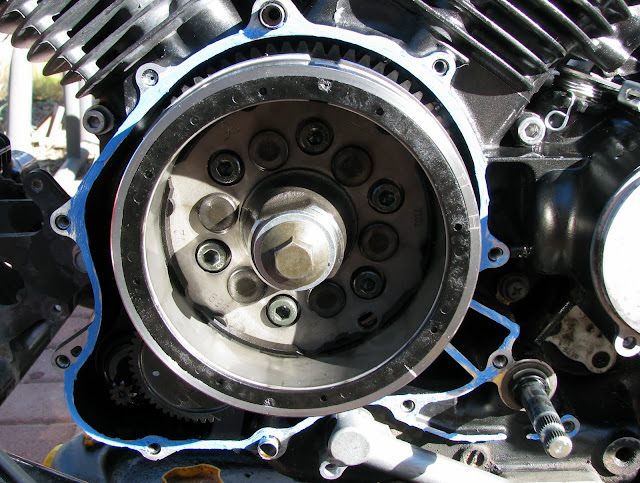

Repeat the gasket maker on the engine side and slap the cover back on it and bolt it down.

All finished! and so far no leaks (knock on wood).  All these bolts on the outside of the cover are very low torque, the manual says something like 5 foot pounds.  Using one of the short alan wrenches just snug them up a little past tight the same as you would for changing the oil or as tight as they were when you took them off.

Thats it, just rerun the wires,  clip them in and reassemble the rest of the bike.  Let it set for a day for the RTV to fully cure and put some oil in it and go for a ride.

35 comments to V Star 650 pickup coil and stator replacement

  • Cece E.

    This was alot of work to fix a yamaha bike. WOW!

  • […] PopularDay 3 – Texan Blast FurnaceTillamook Air Museum – EnginesV Star 650 AIS RemovalV Star 650 pickup coil and stator replacementHomemade EnginesV Star 650 Spline LubeCleaning V Star 650 CarburetorsClassic motorcycle […]

  • […] PopularDay 3 – Texan Blast FurnaceV Star 650 AIS RemovalV Star 650 Spline LubeV Star 650 pickup coil and stator replacementCleaning V Star 650 CarburetorsHomemade Engines1959 Austin Mini stone guard modV Star 650 Neutral […]

  • nicole

    i just wanted to thank you for taken the time to post this for i just got my first bike and it so happens i have found this to be my problem. i am a woman raised by two men who are no longer around yet taught me to fix my own things. i am determined to get this bike going on my own so this is what i will be doing this weekend and appreciate your sharen.

  • Bill

    Thanks for the great post. Did your neutral switch fix and now I have a leak at the stator gromets. Will tackle this one, now that I have the gasket and RTV. In the pics, I noted that you did not detach the clutch cable. Can you leave it attached to remove the cover?

    Also saw that you have what looks like an oil temp guage on the cover. Where did you get it, as I would like to have one? Again, the tips on the post are great and we appreciate your efforts!

    • Lynx

      You can leave the clutch cable attached while you remove that cover, theres just a small bracket with two of the crankcase bolts holding it in place.

      The oil temp gauge came from Shane @ http://www.sscustomcycle.com. They are spendy and mainly measure the air temperature inside the crankcase but it has helped on a number of occasions when it has been running hotter than its normal range and gives you a heads up something may be wrong like: http://ziariderblog.com/2010/06/hot-and-cold/

      I’ve seen similar gauges from somewhere in fahrenheit but don’t remember where.

  • luis maiocchi

    Thanks, this helped me a lot, just let me ad if you remove the manual compartmet (two screws), you have a easy access to the harness and also plz take it from a mechanic do not removethe stators and pick up coil screws before you heat them with a torch or you will brake them, thanks again

  • DohcBikes

    Wow, this must be a hobby for you.

  • dannie

    My 03650 vstar has the back plug soaked and does notfire on the rear. could thus be a pickup coil problem?

    • Lynx

      Get a clean plug and check if you are getting any spark to the rear cyl first. If you are then you probably need to clean out the carb. If not then check the pickup coil resistance.

      Usually pickup coil kills both cyl at the same time and bike will not fire at all, but a friend of mine on a cross country road trip had one cylinder cutting out and it was the pickup coil.

  • viken

    Hi many thanks for the detailed writeup, its been very helpful. I went thru this yesterday, replacing my stator and pickup coil on my 2009 650. It did start right up but now is acting as if the timing is off, backfires, runs rough, won’t idle, etc…
    Is there a specific way to position the stator or pickup coil that may cause timing issues?

    • Lynx

      As far as I know there is not a way to adjust the timing except for some minor things you can do with the throttle position sensor. If your bike had been sitting a while look into cleaning the carbs, especially the pilot jets. Get the wire out of a bread tie and run it through the pilot jets.

  • viken

    ok thanks, that is what i was thinking. I think i’ll try running sea foam through the tank, if that don’t help i’ll tear down the carbs. Thanks again for the info!

  • viken

    Hi again, don’t mean to be a bother, but i took the carbs apart and cleaned them thoroughly. The bike is still backfiring rough thru the exhaust.
    My guess is that i may have put either the stator or the pickup coil wrong, so i’ll take the crank cover off and take a look.
    Any other suggestions would be very appreciated.

  • Josh

    Nice write up. I was just curious how the casted top cover project turned out? I was thinking of doing something similar. Thanks

  • Bob

    I’m having the no spark issue, the bike ran last week so I know it isn’t the kill, clutch, or kickstand switches. So I pulled the pickup coil plug and tested it with a multimeter at 200ohms and I can’t even get any reading. Weird. So it’s toast? I’ve kinda looked along and didnt see any cuts.

    • Lynx

      Does your multimeter have an auto range setting? Try that, you should get something. It can be hard to get a multimeter connection into the tiny holes in that plug also.

      Pickup coils can die overnight without warning. I try to keep a spare on hand for that reason, they are the Achilles heel of this bike. It can limp along with just about every other problem but a pickup coil going bad will stop you in your tracks.

  • Michael

    Hey Lynx, nice write up. I replaced mine yesterday, put oil in it today so the gasket maker had time to cure. But Im getting the same issue as Viken, back fires, runs rough, but it will only stay started if I have the choke fully open. Could that also be part of the carbs?

  • Michael

    Sorry, also forgot to mention, not I am also only getting a spark on the left side of the bike, plug is wet, the right side wont spark and plug is dry.

  • Michael

    Finished cleaning the carbs. Now it idles fine now. But..Will still only stay started with the choke fully open, but only for a minute, unless I hit the throttle a little. So its getting better, slowly.

  • Wiesshund

    If you are adventurous
    On the late model with the conjoined stator/pickup coil wiring, you can buy an early model pickup coil, and simply splice it into the wiring.
    Solder the wire joints using a linemans splice, and squirt some rtv into a heat shrink tube and shrink it over the splice.
    If your low on funds, this can save a lot of cash

  • Can't.Kirk

    You sir! Are doing a great service! Documenting your adventures. I have both Neutral switch and this stator wire leak on my 650. Inspired by your document here I am going to try to fix it myself! Cannot thank you enough for all your write ups!

  • Jeff

    You are awesome… Thanks for all the insight, I just picked up a V-Star 650 and your page is a great resource!

  • Ken Danks

    Thanks for all the info. when they told me what was wrong with my baby!! I had no clue of what they were talking about?? Now I do !! they want to charge me 650.00 to fix here. Is that a fare price??

  • SJames

    Has anyone else had an idling problem after their stator/pick up replacement? I tried reversing the pick up wires and that made it worse. I can rock the bike back and forth and get the hesitation/afterfire problem making me believe it’s the carb. But I’ve cleaned that carb several times and multiple people have the same problem with the same cylinder after the repair, but I’ve yet to find a definitive answer.

  • MichaelF

    I am having the same problems. I replaced my stator, and pick-up and now its backfiring. I cleaned the carb, no luck. I can’t switch the pick-up wires since they are attached to a plug. Please if anyone has any answers or suggestion let me know.

  • Ben

    I cut the two wires and switched them around and it solved my problem

  • Mike

    I was wondering how many miles you have put on this bike? Three stators failing makes me believe you have a bad voltage regulator and/or shorted wires somewhere. I replaced pickup and stator on a Kaw 800 then discovered it had a shorted CDI box. It would start and run but drained the battery when switched off. The bad short in the CDI was overloading the stator and trigger coil causing them to fail.

    • Lynx

      Over 60,000 miles on the bike but I have not ridden it much in the last 3 or 4 years. I’ve only had one stator failure in all those miles, that was the Electrosport one. The reason I changed out the OEM for the electrosport was because the pickup coil had failed, the stock stator was still good and I still have it for a spare. So I’ve changed it twice, one with the pickup coil and once because the aftermarket stator died quickly after putting it in (the Accel unit in there now is still going strong). I have changed out stators on several other’s bikes though. (I usually put in Rick’s or OEM, I do not recommend electrosport after my experience and several others quick failures. The accel stator has been great so far but they have been difficult to find and may have quit making them)

  • Drew

    My biked stopped getting spark about a month before the end of the riding season. I found this to be the only guide available to actually show you how to remove the stator and pickup coil. It took me a good week of tinkering on it in my free time but I was finally able to add oil and fire it up. THANKS a ton for this write up its the only reason I had the courage to do it myself! My bike is now running and I’ll hopefully get a good week of colder riding in before storage, thanks million!
